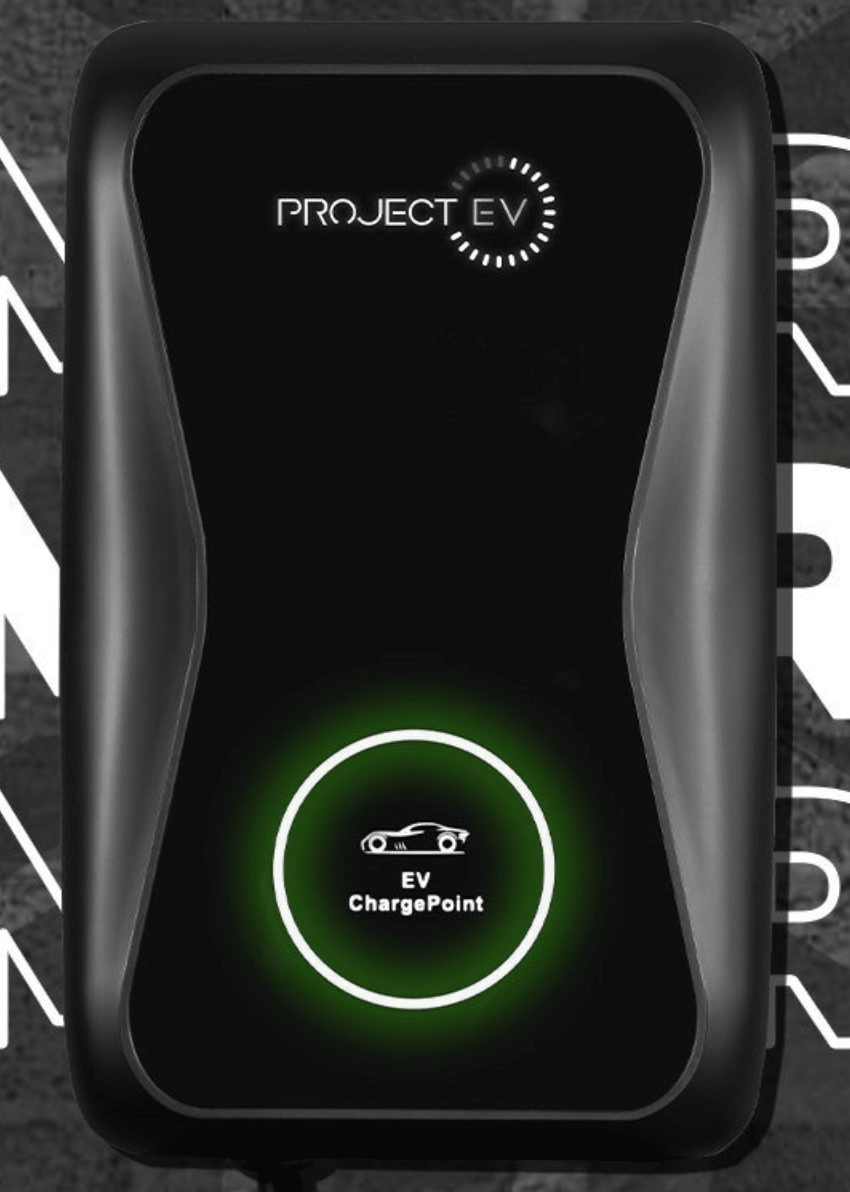

Project EVSmart PRO Earth

Efficient, simple charging

The Project EV Smart PRO Earth is an advanced EV charger packed with integral safety features. It also links with its very own smart mobile app to keep track of charging and energy usage. The Project EV app allows you to get the most out of your EV charger, packed with technology and intelligent features. Cable lock technology which gives you peace of mind when using an untethered charging cable. This allows you to lock the charger into the desired position, giving it security and added protection.

Benefits

- Pro Earth, built in earthing arrangement means there is no need for an added earth point for the installation.

- Wi-Fi/APP/ethernet monitoring.

- Solar compatibility, meaning you can charge your vehicle using the green energy harnessed by your solar system.

- App scheduling for timed charge sessions. Select and customise charging rates, and prioritise off-peak charging to save costs.

- Dynamic load balancing to pair up multiple chargers from a single power source efficiently.

Other benefits

This charge point boasts off-peak time-shifting charge technology, which means it is capable of using lower rate tariff energy for charging, saving you money while charging your vehicle. This charge point has a 7kW charging capacity. This allows eco-low and medium-level charging.

Not sure what charger your require?

Check out our article explaining which EV charger type and requirements will suit your needs here.

Power

All Project EV chargers are available from 3.6kW, 7kW and up to 22kW three-phase. This makes them the perfect charger for homes, businesses and public charging. Load balancing allows multiple units to be connected on the same supply and avoid overloading the power giving you peace of mind.

Compatibility

The Project EV comes untethered so both Type 1 and Type 2 compatible. This gives great flexibility when charging as Type 1 connection may be required on some EVs.

Durability

Project EV charge points are IP54 compliant and will withstand temperatures from -25°C to 50°C. They also incorporate Impact Protection through the durable material casing.

Connectivity

Project EV charging app with Wi-Fi connectivity. The Project EV app can be downloaded from the app store/ play store. The app is easy to use and helps simplify EV charging making charging simple and effective with its many features available. Charge scheduling and charging rates can be managed through the Project EV app.

Reliability

All Project EV chargers comply with local standards and UK protection requirements and are covered by the Project EV 5-Year warranty. There is also customer product support available to help any product/ app related enquiries or technical issues at www.projectev.co.uk.

Safety

All Project EV chargers come with overload protection, pro earth (no separate earth electrode required) and RCD - Type A +6mA DC fault current protection.

Electrical

Charging Power - Single phase: 7.3kW. Three phase: 22kW

Input voltage - Single phase: 230V AC. Three phase 400V AC

Supply frequency - 50/Output Hz

Rated current - Single phase: 32A max. Three phase: 3x 32A

Over voltage protection - YES

Under voltage protection - YES

Overload protection - YES

RCD - Type A +6mA DC fault current protection

RFID - YES (Only applies to EVA-07S-SE RFID)

Ethernet/WI-FI/4G - YES/YES/OPT

Mechanical

Degree of protection - IP65

Connector - Socket/Plug

Dimension (W/H/D) - 240/380/145mm

Weight - <7KG

Charging interface type - IEC 62196-2

Emergency stop button - YES

Operating temperature - -25°C ~ 50°C
